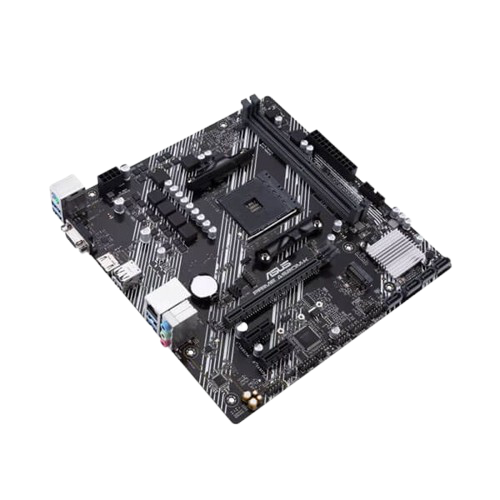

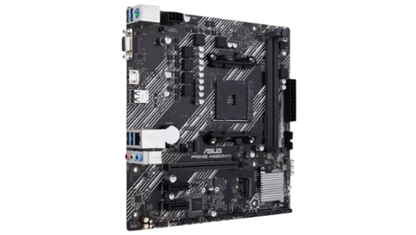

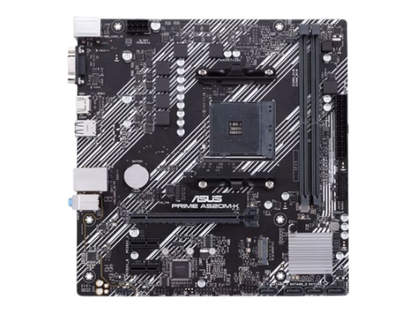

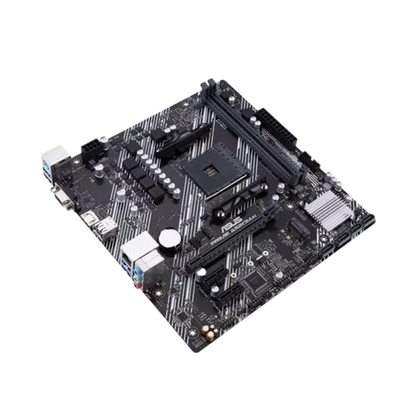

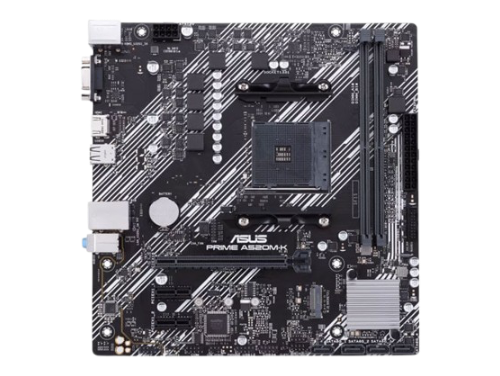

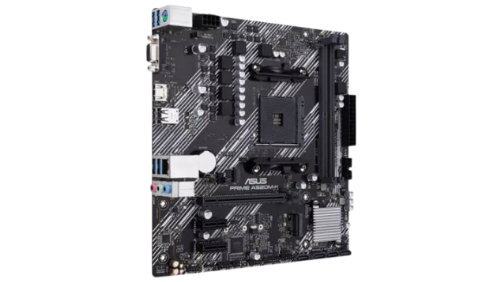

Asus Prime A520M-K/CSM M-ATX Motherboard

Motherboard Platform AMD Socket AM4 Cpu Type Ryzen 5000, Ryzen 5000-G, Ryzen 4000-G, Ryzen 3000, Ryzen 3000-G Chipset A520 Memory Speed up to 4866 Max Memory Support 64 GB Supported Memory Type DDR4 Channel...

In stock

Rs. 5,625.00

Secure checkoutShopify protected

Easy supportFast assistance

Quality promiseBuilt for confidence

Fast dispatchSubject to availability

Delivery estimate

Check delivery to your PIN code

⌖

Enter your PIN code to see the delivery estimate configured for your store.

PIN code

PRODUCT DETAILS

Everything you need to know

Motherboard
Platform	AMD
Socket	AM4
Cpu Type	Ryzen 5000, Ryzen 5000-G, Ryzen 4000-G, Ryzen 3000, Ryzen 3000-G
Chipset	A520
Memory Speed	up to 4866
Max Memory Support	64 GB
Supported Memory Type	DDR4
Channel Supported	Dual Channel
Memory Feature	Un-buffered Memory Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU
Graphics Port	1 x HDMI 2.1
Expansion Slots	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors AMD A520 Chipset 2 x PCIe 3.0 x1 1 x PCIe 3.0 x16 (x16 mode)
Back Panel I/O Ports	4 x USB 3.2 Gen 1 (blue) Type-A 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 3 x Audio jack(s)
Internal I/O Connector	1 x COM port header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
Form Factor	Micro-ATX
Warranty	3 Years
Note	Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only
