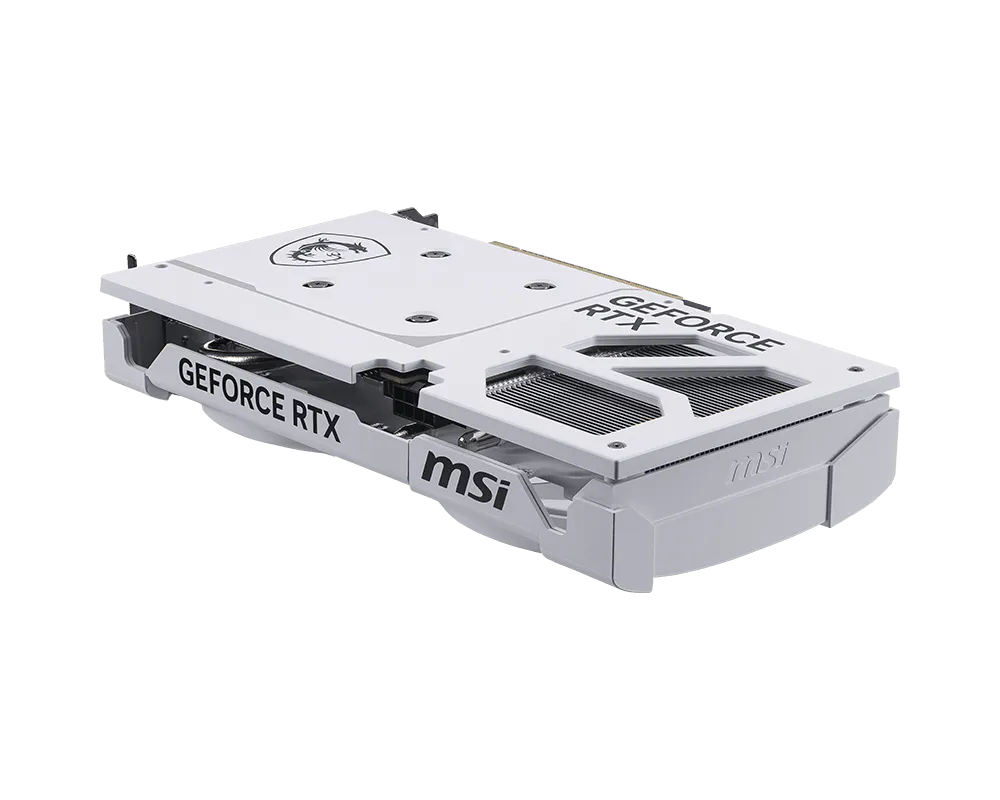

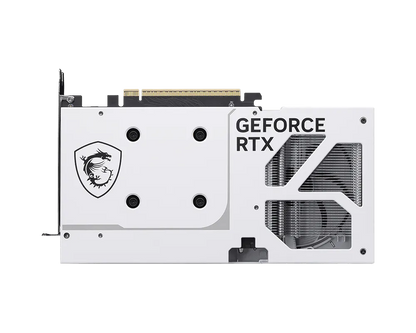

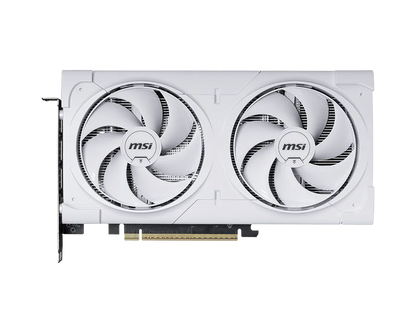

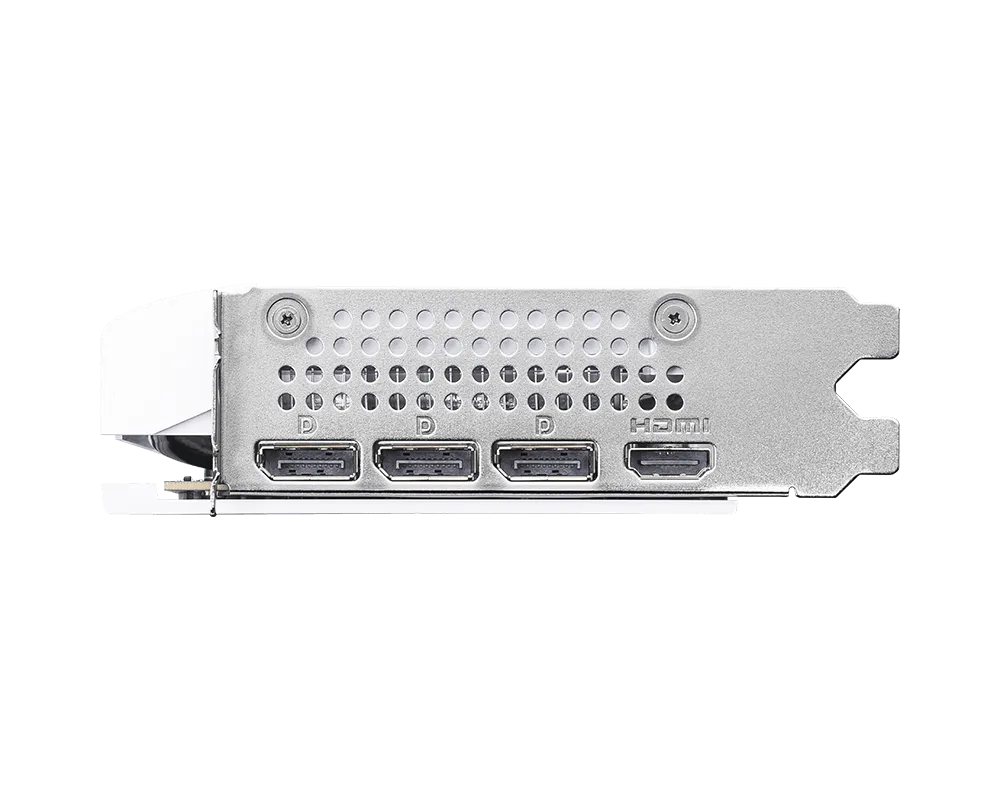

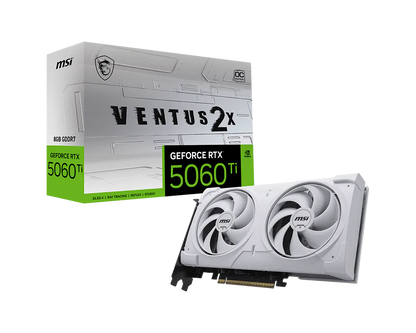

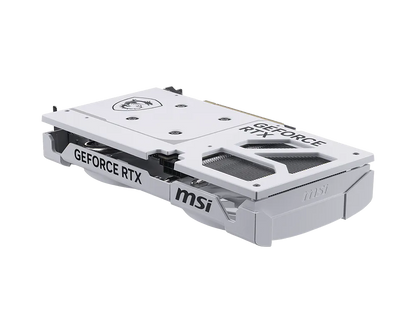

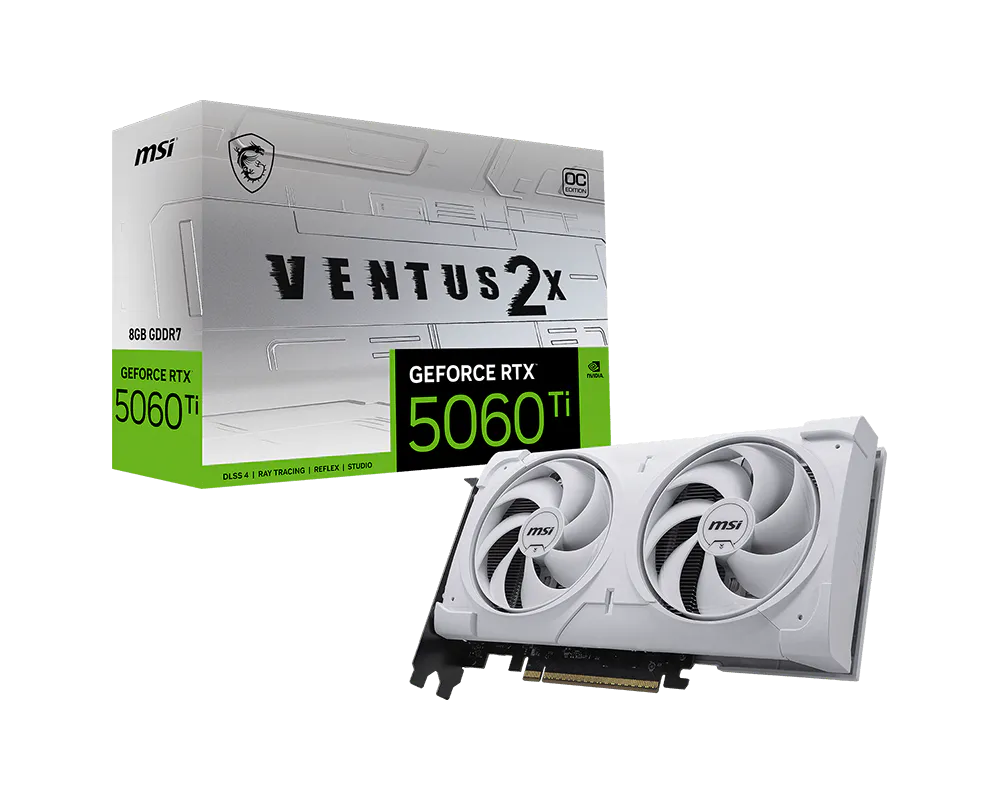

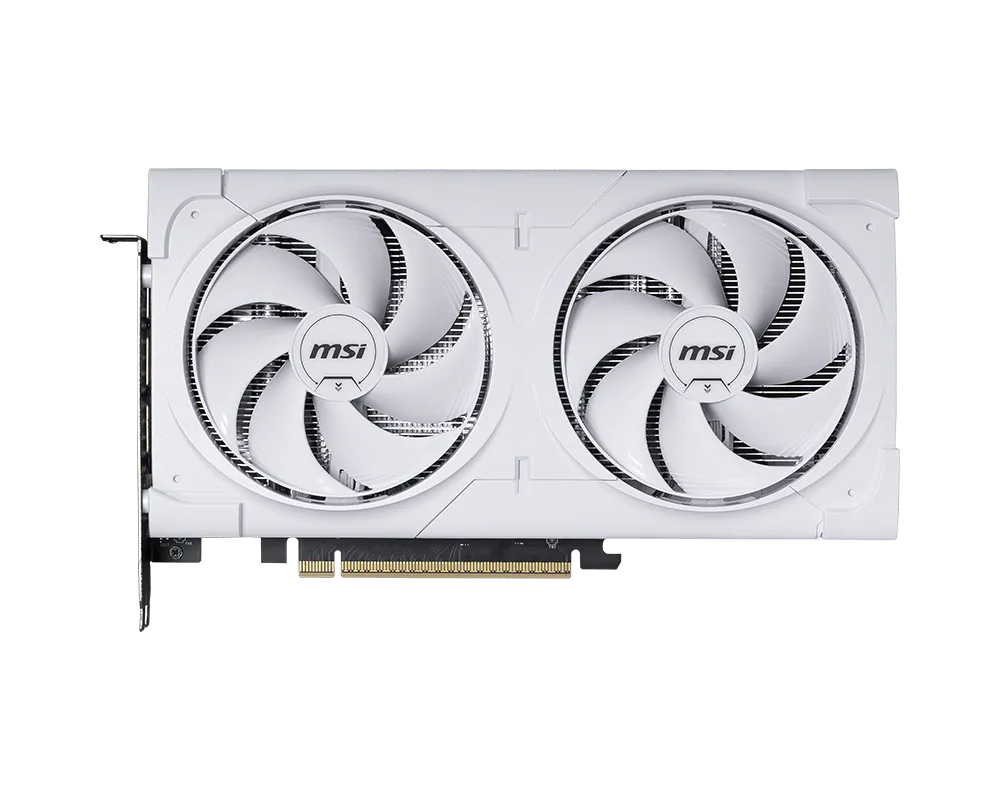

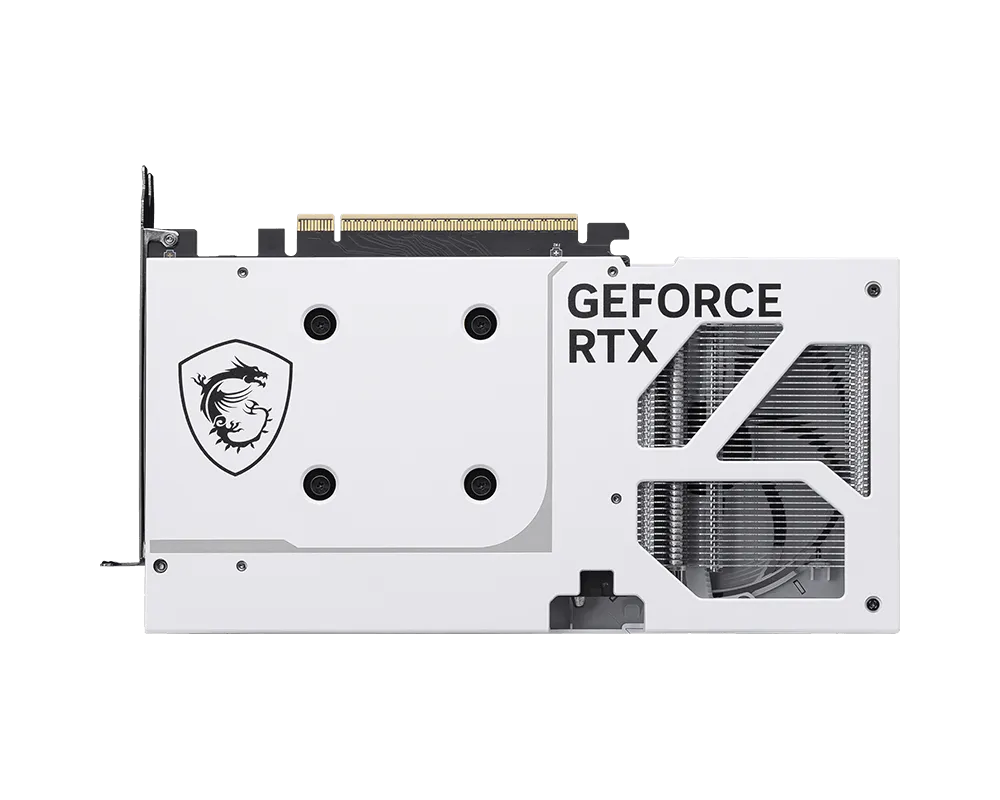

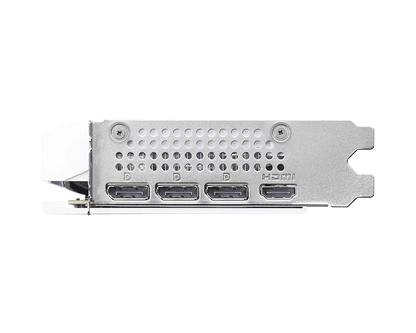

SPECIFICATIONS Marketing Name GeForce RTX™ 5060 Ti 8G VENTUS 2X OC WHITE PLUS Model Name G506T8V2CWP Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti Interface PCI Express® Gen 5 x16 (uses x8) Core Clocks Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz CUDA® CORES 4608 Units Memory Speed 28 Gbps Memory 8GB GDDR7 Memory Bus 128-bit Output DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) HDCP Support Y Power consumption 180 W Power connectors 8-pin x1 Recommended PSU 600 W Card Dimension (mm) 227 x 126 x 41 mm Weight (Card / Package) 600 g / 862 g DirectX Version Support 12 Ultimate OpenGL Version Support 4.6 Maximum Displays 4 G-SYNC® technology Y Digital Maximum Resolution 7680 x 4320
