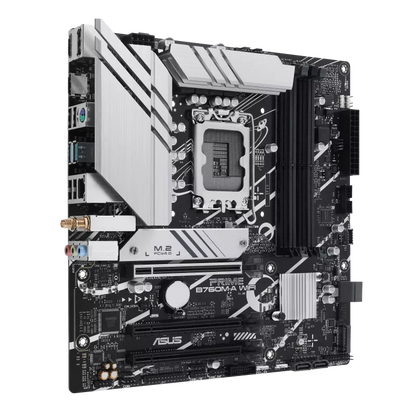

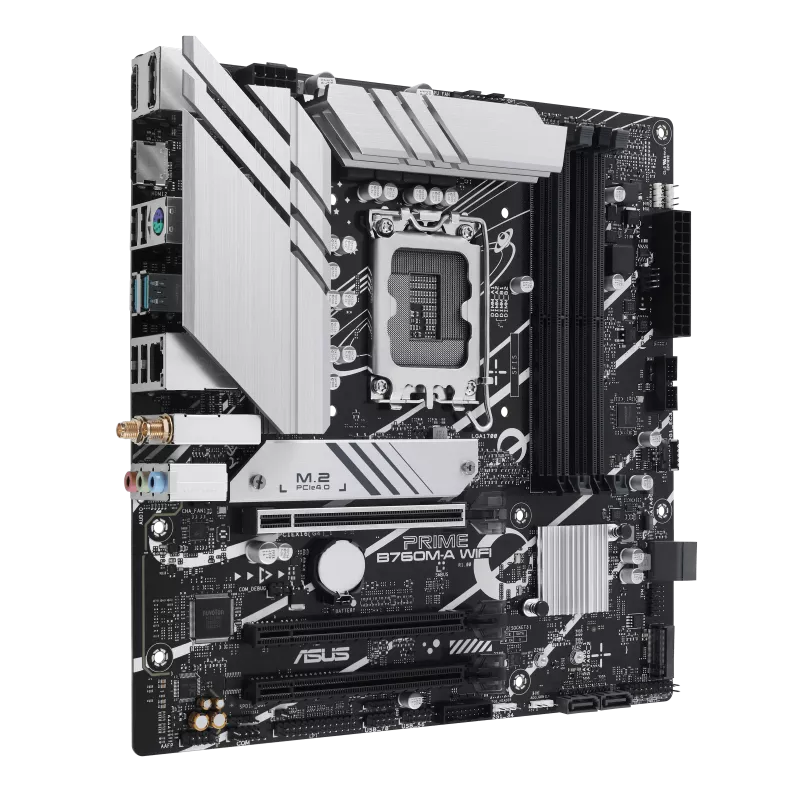

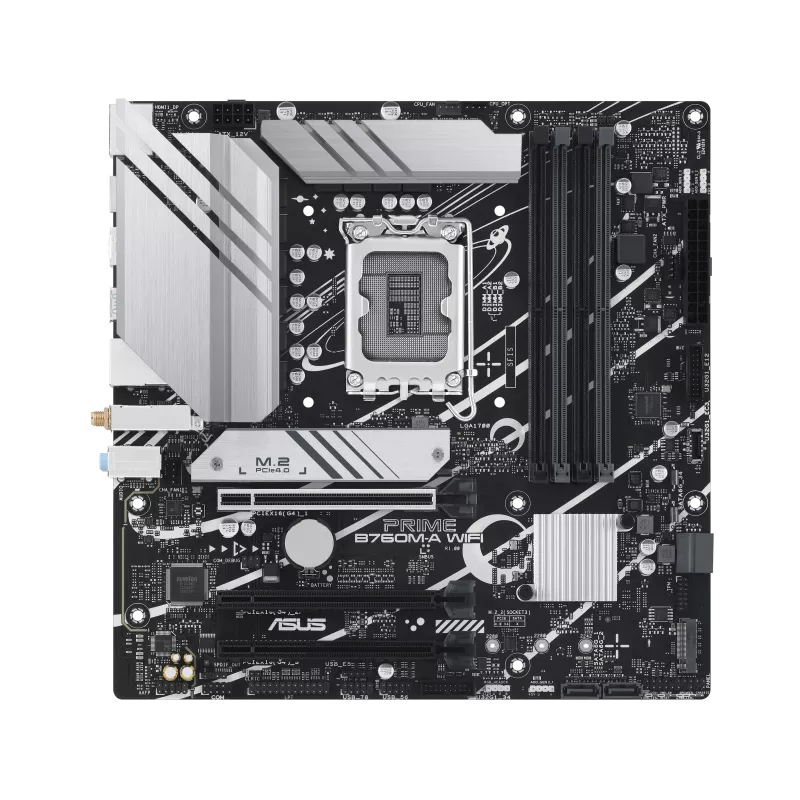

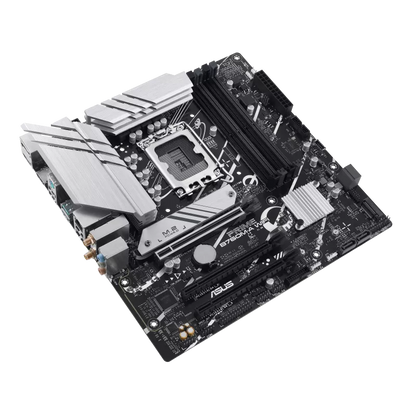

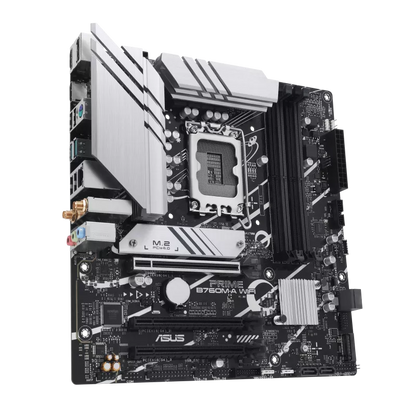

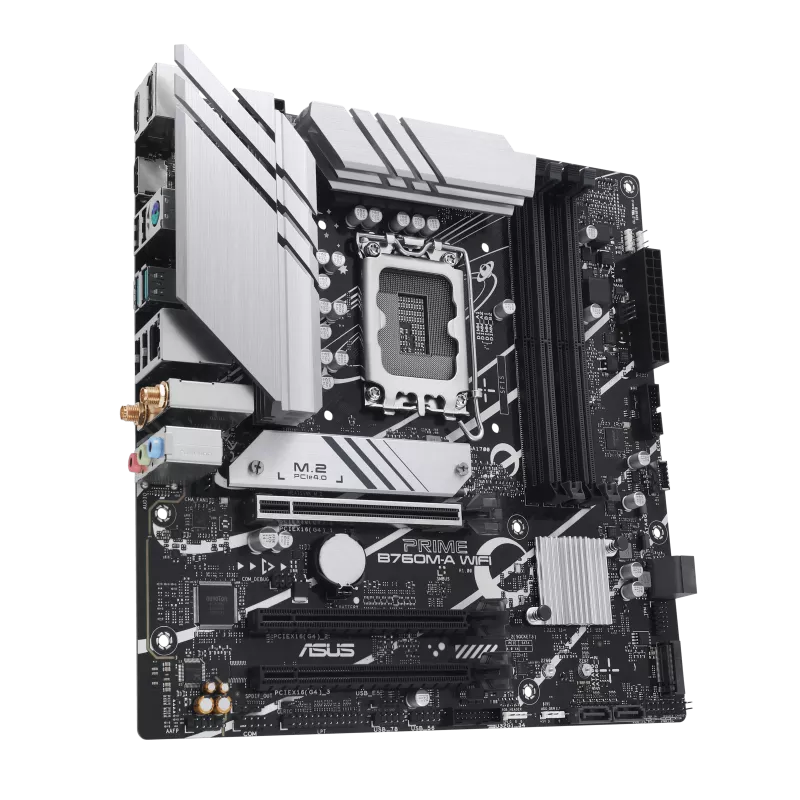

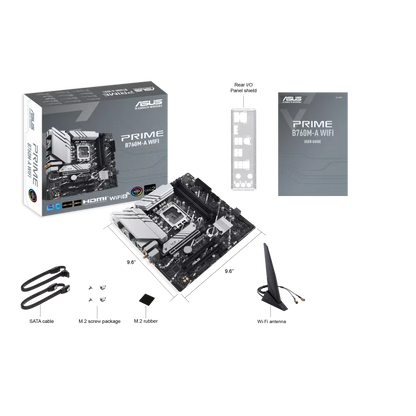

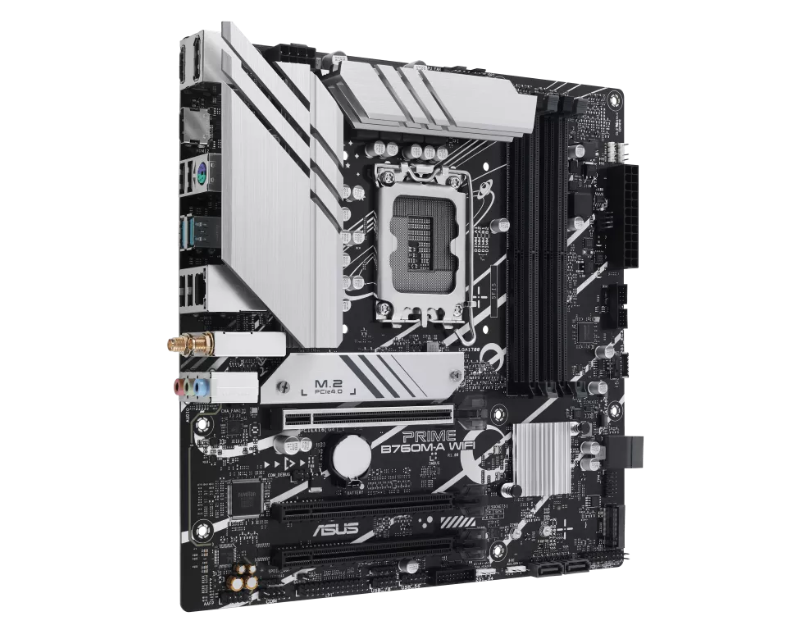

Asus Prime B760M-A WIFI DDR5 M-ATX Motherboard

Asus Prime B760M-A WIFI DDR5 M-ATX Motherboard

Rs. 14,736.00
Rs. 14,736.00
Sale Sold out
Taxes included.
Motherboard
Platform INTEL
Socket LGA1700
Cpu Type 13th Gen, 12th Gen
Chipset B760
Memory Speed up to 7200+
Max Memory Support 128 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Graphics Port 1 x DisplayPort, 2 x HDMI ports
Expansion Slots Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
Wireless Networking WiFi 6,Bluetooth 5.2

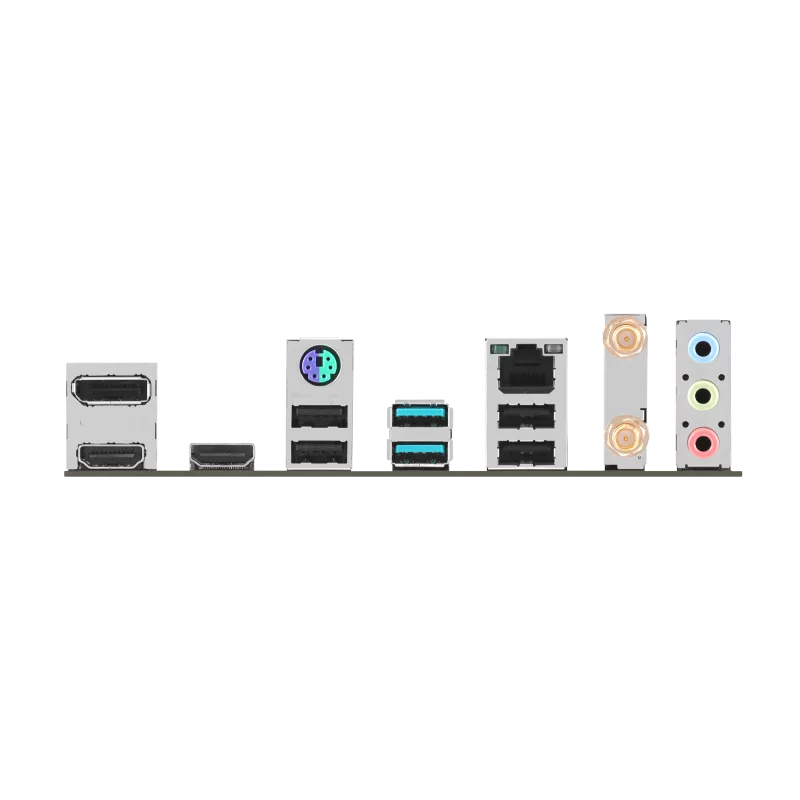

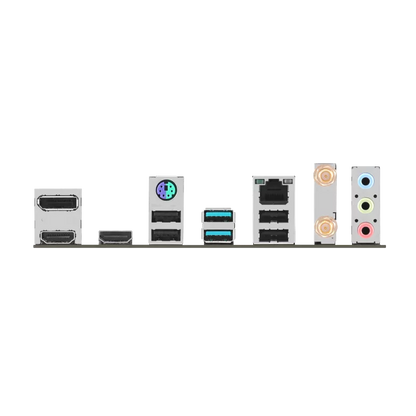

Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMITM ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connector Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
Form Factor Micro-ATX
Warranty 3 Years
Note

Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only
