Intel Chipset

FeaturesIntel® LGA 1700 socket:Ready for 14th, 13th & 12th Gen Intel® processorsComprehensive cooling: PCH heatsinkUltrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 15X Protection III: Multiple hardware safeguards for all-round protectionLuminous anti-moisture coating: Keep key components from moisture and corrosionPRIMEASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.All-Around Energy EfficiencyThe Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.MotherboardPlatformINTELCpu Type14th Gen,13th Gen, 12th Gen,Pentium Gold,CeleronChipsetH610Memory Speedup to 3200Max Memory Support64 GBSupported Memory TypeDDR4Channel SupportedDual ChannelMemory FeatureSupports Intel® Extreme Memory Profile (XMP)*Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to Brand Website for memory support list.Graphics Port1 x D-Sub,1 x HDMIExpansion SlotsIntel® Core™ Processors (14th & 13th & 12th Gen)1 x PCIe 4.0 x 16 slotIntel® H610 Chipset1 x PCIe 3.0 x 1 slotBack Panel I/O Ports2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x D-Sub port1 x HDMI® port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard (purple) port1 x PS/2 Mouse (green) portInternal I/O ConnectorFan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector1 x 4-pin +12V Power connectorStorage related1 x M.2 slot (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 header support additional 2 USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x Chassis Intrude header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x LPT header1 x Speaker header1 x SPI TPM header (14-1 pin)1 x 10-1 pin System Panel headerForm FactorMicro-ATXWarranty3 YearsNoteFeatures, Price, Specifications are subject to change without notice. Images used for representation purposes only

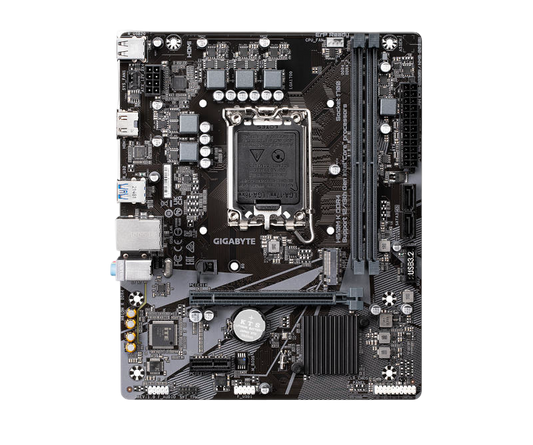

Features:PCIe 4.0* Design, Gen3 x4 M.2, GbE LAN, Anti-Sulfur Resistor, Smart Fan 6Supports Intel® Core™ 14th/ 13th /12th processorsDual Channel Non-ECC Unbuffered DDR4, 2 DIMMsGbE LAN with Bandwidth ManagementNVMe PCIe 3.0 x4 M.2High Quality Audio Capacitors and Audio Noise GuardSmart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOPGIGABYTE APP Center, Simple and Easy UseAnti-Sulfur Resistors DesignGbE LAN with Bandwidth ManagementGbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.NVMe PCIe Gen3 x4 M.2 ConnectorGIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.Solid Pin Power ConnectorsH610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.BIOSThe BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.MotherboardPlatformINTELSocketLGA1700Cpu Type14th Gen,13th Gen,12th Gen,Pentium,CeleronChipsetH610Memory Speedup to 3200Max Memory Support64 GBSupported Memory TypeDDR4Channel SupportedDual ChannelMemory FeatureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modulesGraphics Port1 x HDMIExpansion SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1Back Panel I/O Ports1 x HDMI port2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacksInternal I/O Connector1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x M.2 Socket 3 connector2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)1 x Clear CMOS jumperForm FactorMicro-ATXWarranty3 YearsNoteFeatures, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

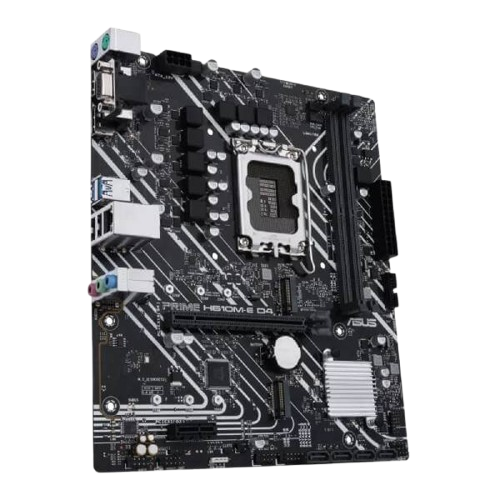

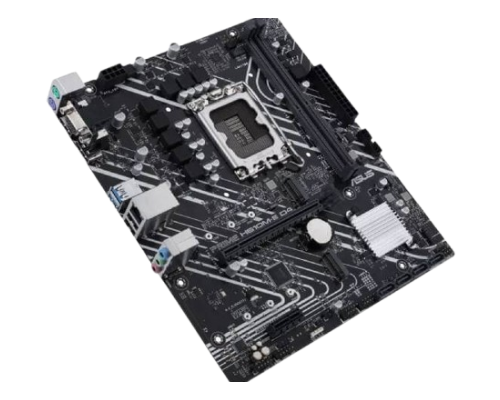

Features:Intel H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Realtek 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB headerIntel LGA 1700 socket: Ready for 14th, 13th & 12th Gen Intel® processorsComprehensive cooling: PCH heatsink and Fan Xpert 2+Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 15X Protection III: Multiple hardware safeguards for all-round protectionASUS Control Center Express (ACCE) for easier IT endpoint managementSpecifications:ModelPRIME H610M-E D4-CSMCPUIntel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron ProcessorsSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel H610 ChipsetMemory2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)* Actual memory data rate depends on the CPU types and DRAM modulesGraphics1 x DisplayPort**1 x D-Sub port1 x HDMI® port**** Graphics specifications may vary between CPU types** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1.Expansion SlotsIntel Core Processors (14th & 13th & 12th Gen)1 x PCIe 4.0 x16 slotIntel H610 Chipset1 x PCIe 3.0 x1 slotStorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel H610 ChipsetM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)4 x SATA 6Gb/s portsEthernet1 x Realtek 1Gb EthernetUSBRear USB (Total 4 ports)2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 6 ports)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsAudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x D-Sub port1 x HDMI® port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard (purple) port1 x PS/2 Mouse (green) portInternal I/O ConnectorsFan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous1 x RGB header1 x Clear CMOS header1 x Front Panel Audio header (AAFP)1 x COM Port header1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel headerSpecial FeaturesASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-SlotASUS Thermal Solution- Aluminum heatsink designASUS Lighting Control- RGB headerSoftware FeaturesASUS Exclusive SoftwareArmoury CrateAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDIGI+ VRMFan Xpert 2+ASUS CPU-ZIT Management software supported- ASUS Control Center Express(ACCE)Norton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeBIOS128 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 SSD screw packageInstallation Media1 x Support DVDDocumentation1 x ACC Express Activation Key Card1 x User guideOperating SystemWindows 11 64-bit, Windows 10 64-bitForm FactormATX Form Factor9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)Warranty3 YearsNote*** Features, Price, Specifications are subject to change without notice.***Images used for representation purposes only

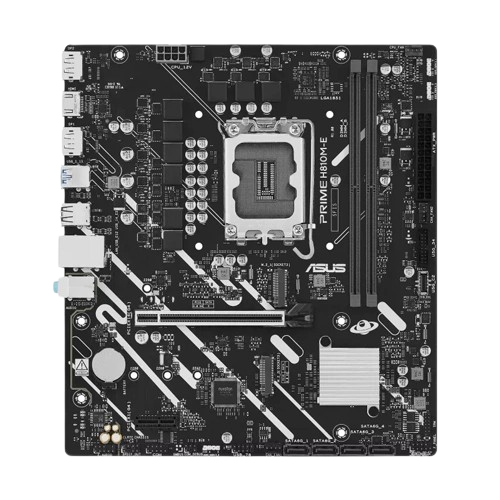

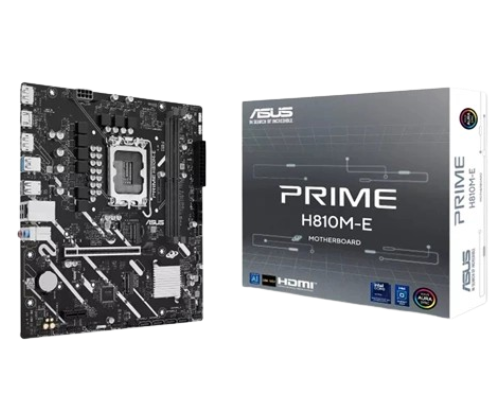

Features:PRIME H810M-EASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-E motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.Digital Power DesignStable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2).The PRIME H810M-E features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel processors plus steady performance for day-to-day use.DIMM Fit / DIMM Fit ProDIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.Two M.2 slots (up to 64Gbps)PRIME H810M-E offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 64Gbps via PCIe 4.0, one that supports 32Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.Cooler by designThe PRIME H810M-E motherboard is engineered with onboard chipset heatsink and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.PersonalizationThe PRIME H810M-E enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.MotherboardPlatformINTELSocketLGA1851Cpu TypeCore UltraChipsetH810Memory Speedup to 6400Max Memory Support128 GBSupported Memory TypeDDR5Channel SupportedDual ChannelMemory FeatureUn-buffered ,Clocked Unbuffered DIMM (CUDIMM)Supports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile II (AEMP II)Graphics Port2 x DisplayPort,1 x HDMIExpansion SlotsIntel Core Ultra Processors (Series 2)1 x PCIe 4.0 x16 slotIntel H810 Chipset1 x PCIe 4.0 x1 slotBack Panel I/O Ports2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)2 x DisplayPort1 x HDMI port1 x Realtek 1Gb Ethernet port3 x Audio jacksInternal I/O ConnectorFan and Cooling Related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectorStorage Related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps connector (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 portsMiscellaneous3 x Addressable RGB Gen 2 headers1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin Front Panel System headerForm FactorMicro-ATXWarranty3 YearsNoteFeatures, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only

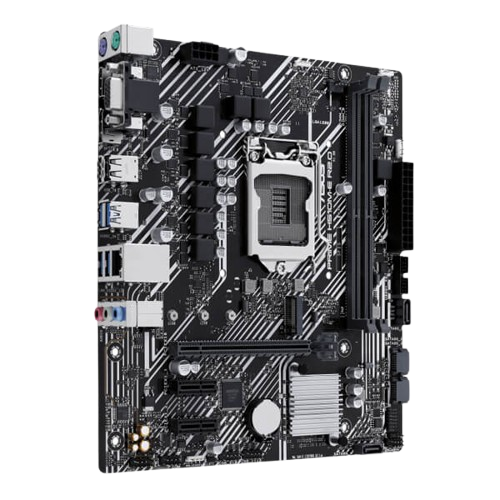

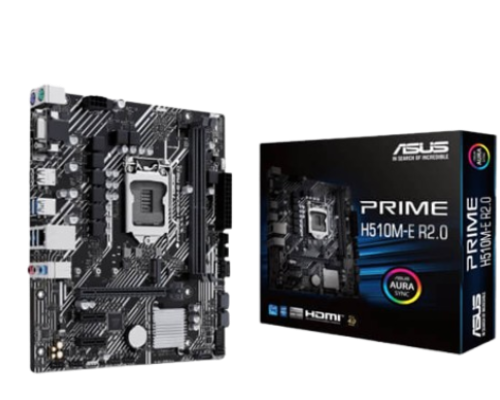

Features:Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® ProcessorsComprehensive cooling: PCH heatsink and Fan XpertUltrafast connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 3.2 Gen 1Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware5X Protection III: Multiple hardware safeguards for all-round protectionCOOLINGPrime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.Cooler by DesignPrime H510 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.Multiple Temperature SourcesEach header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.Specifications: Model PRIME H510M-E R2.0 CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron®Processors*Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset Intel® H470 Chipset Memory 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)*10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.*11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Graphics1 x DisplayPort 1.41 x VGA1 x HDMITM 2.1 Expansion Slots Intel® 11th & 10th Gen Processors1 x PCIe 4.0/3.0 x16 slot- Intel® 11th Gen processors support PCIe 4.0 x16- Intel® 10th Gen processors support PCIe 3.0 x16Intel® H470 Chipset2 x PCIe 3.0 x1 slots Storage Total supports 1 x M.2 slot and 4 x SATA6Gb/s portsIntel® H470 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)4 x SATA 6Gb/s ports Ethernet 1 x Realtek 1Gb Ethernet USB Rear USB (Total 6 ports)4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 6 ports)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers Back Panel I/O Ports 4 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)2 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x VGA port1 x HDMI™ port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard (purple) port1 x PS/2 Mouse (green) port Internal I/O Connectors Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related1 x M.2 slot (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous2 x AURA Addressable Gen 2 headers2 x AURA RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header Special Features  ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Aluminum heatsink designAURA Sync- AURA RGB headers- Addressable Gen 2 RGB headers Software Features ASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA SyncAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDIGI+ VRMFan Xpert- EZ updateASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUSEZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories  Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 SSD screw packageDocumentation1 x User guide Operating System Windows® 10 64-bit Form Factor mATX Form Factor8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm ) Warranty 3 YearsNoteFeatures, Price, Specifications are subject to change without notice. Images used for representation purposes only

Features:Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socketSupports DDR5 Memory, up to 5600(MAX) MHzCore Boost : With premium layout and digital power design to support more cores and provide better performanceMemory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibilityLightning Fast Experience: PCIe 4.0Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connectionAudio Boost: Reward your ears with studio grade sound qualitySteel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.FROZR AI COOLINGDetecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.LOW LATENCY GAMING LAN POWERED BY INTEL®Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.MotherboardPlatformINTELSocketLGA1700Cpu Type14th Gen,13th Gen,12th Gen,Pentium,CeleronChipsetH610Memory Speedup to 5600Max Memory Support96 GBSupported Memory TypeDDR5Channel SupportedDual ChannelMemory FeatureSupports non-ECC, un-buffered memoryGraphics Port1x HDMI,1x DisplayPort,1x VGAExpansion Slots1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)Back Panel I/O PortsHDMIVGADisplayPortKeyboard / MouseUSB 3.2 Gen 1 5Gbps (Type-A)LAN portAudio ConnectorsUSB 2.0Internal I/O Connector1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable RGB LED connector(JRAINBOW)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)2x USB 2.0 ports2x USB 5Gbps Type A portsForm FactorMicro-ATXWarranty3 Years

Features:Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socketSupports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)Core Boost : With premium layout and digital power design to support more cores and provide better performanceMemory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibilityLightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experienceSteel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strengthMotherboardPlatformINTELSocketLGA1700Cpu Type14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron ProcessorsChipsetB760Memory Speedup to 4800Max Memory Support64 GBSupported Memory TypeDDR4Channel SupportedDual ChannelMemory FeatureSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel Extreme Memory Profile (XMP)Graphics Port1x HDMI, 1x VGAExpansion Slots1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to (From CPU)PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)Back Panel I/O PortsHDMIVGAKeyboard / MouseUSB 3.2 Gen 1 5Gbps (Type-A)LAN portAudio ConnectorsUSB 2.0USB 2.0Internal I/O Connector1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)2x USB 2.0 ports1x USB 5Gbps Type A portsForm FactorMicro-ATXWarranty3 Years

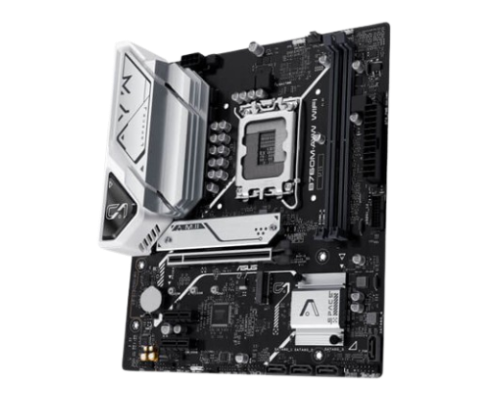

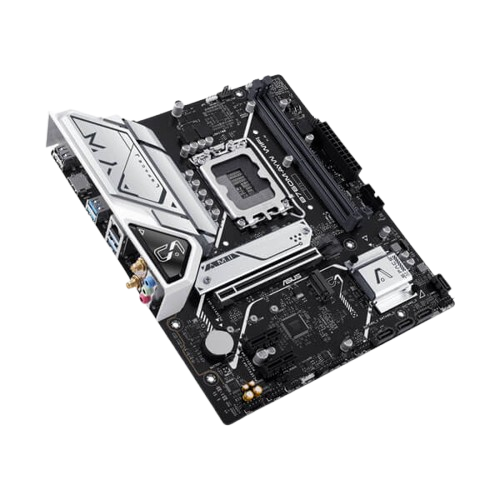

 Features:Flexibility: The B760M-AYW WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.Intelligent Control: ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.All-Around Energy Efficiency: The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft WindowsCooling: Engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.M.2 Heatsink: M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel Core ProcessorsUltrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet , WiFi 6 and front USB 3.2 Gen 1 supportAura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware. Specifications:Model:B760M-AYW-WIFICPU:Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.Chipset:Intel B760 ChipsetMemory:2 x DIMM slots, Max. 96GB, DDR58000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP) Graphics:1 x HDMI portExpansion Slots:Intel Core Processors (14th & 13th & 12th Gen)1 x PCIe 4.0 x16 slotIntel B760 Chipset2 x PCIe 4.0 x1 slotsStorage:Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel Core Processors (14th & 13th & 12th Gen)M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel B760 Chipset:M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.Ethernet:1 x Realtek 2.5Gb EthernetASUS LANGuardWireless & Bluetooth:Wi-Fi 6Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.3**The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.USB:Rear USB (Total 6 ports)4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 4 ports)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports1 x USB 2.0 header supports 2 additional USB 2.0 portsAudio:Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Feature:- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports:4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x HDMITM port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port3 x Audio jacksInternal I/O Connectors:Fan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports1 x USB 2.0 header supports 2 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel headerSpecial Feature:ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core +- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-DIMM- Q-LED Core- Q-SlotASUS EZ DIY- ProCoolASUS Thermal Solution- M.2 heatsink- VRM heatsink designAura Sync- Addressable Gen 2 headersSoftware Features:ASUS Exclusive SoftwareArmoury Crate- Aura Sync- Fan Xpert 2+- Power Saving- Two-Way AI Noise CancellationAI Suite 3- DIGI+ VRM- PC CleanerASUS CPU-ZMyASUSNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeBIOS:128 Mb Flash ROM, UEFI AMI BIOSManageability:WOL by PME, PXEAccessories:Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS Wi-Fi moving antennas1 x I/O Shield1 x M.2 Rubber Package1 x Screw package for M.2 SSDDocumentation1 x User guideOperating System:Windows 11, Windows 10 64-bitForm Factor:mATX Form Factor9.6 inch x 8.3 inch (24.4cm x 21.1cm)Warranty:3 YearsNoteFeatures, Price, Specifications are subject to change without notice. Images used for representation purposes only

Features:Intel® Socket LGA 1700：Support 13th and 12th Gen Series ProcessorsUnparalleled Performance：Hybrid 6+2+1 Phases Digital VRM SolutionDual Channel DDR4：4*DIMMs XMP Memory Module SupportNext Generation Storage：2*PCIe 4.0 x4 M.2 ConnectorsM.2 Thermal Guard：To Ensure M.2 SSD PerformanceEZ-Latch：PCIe 4.0x16 Slot with Quick Release DesignFast Networks：2.5GbE LAN & Wi-Fi 6E 802.11axExtended Connectivity：Rear USB-C® 10Gb/s, DP, HDMISmart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card6+2+1 Phases Hybrid Digital VRM Design• 6+2+1 Phases Low RDS(on) MOSFETs• Premium Choke and Capacitors to improve transient response and minimize oscillationGIGABYTE Ultra-Efficient M.2 Thermal GuardWith durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.MotherboardPlatformINTELSocketLGA1700Cpu Type14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron ProcessorsChipsetB760Memory Speedup to 5333Max Memory Support128 GBSupported Memory TypeDDR4Channel SupportedDual ChannelMemory FeatureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modulesGraphics Port1x HDMI, 2x DisplayPortExpansion SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16* The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset:2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1Wireless NetworkingWiFi 6E,Bluetooth 5.3Back Panel I/O Ports2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (2T2R)1 x HDMI port2 x DisplayPorts3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x RJ-45 port3 x audio jacksInternal I/O Connector1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x S/PDIF Out header1 x Q-Flash Plus button1 x reset button1 x reset jumper1 x Clear CMOS jumperForm FactorMicro-ATXWarranty3 YearsNoteFeatures, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only

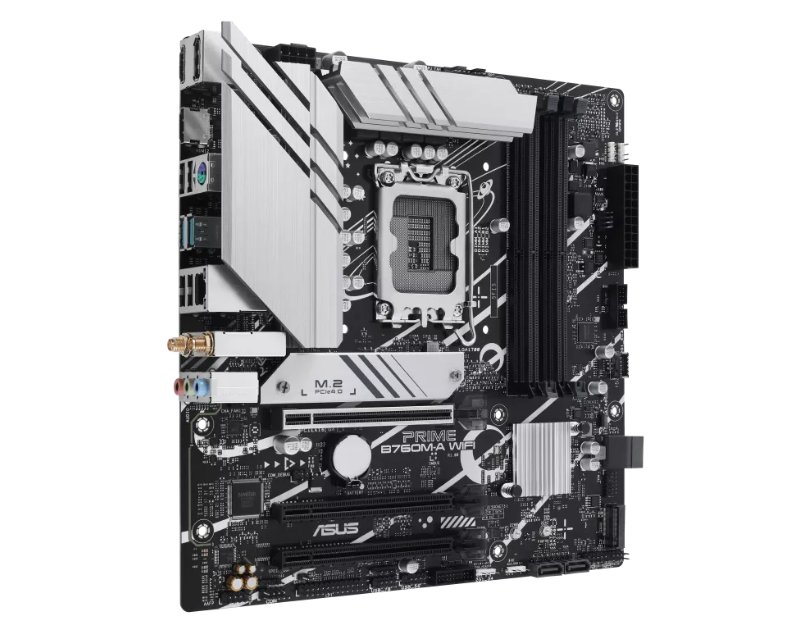

Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processorsUltrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-CComprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem IIAura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardwareMotherboardPlatformINTELSocketLGA1700Cpu Type13th Gen, 12th GenChipsetB760Memory Speedup to 7200+Max Memory Support128 GBSupported Memory TypeDDR5Channel SupportedDual ChannelMemory FeatureSupports Intel Extreme Memory Profile (XMP)OptiMem IIGraphics Port1 x DisplayPort, 2 x HDMI portsExpansion SlotsIntel 13th & 12th Gen Processors1 x PCIe 4.0 x16 slotIntel B760 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x16 slot (supports x1 mode)Wireless NetworkingWiFi 6,Bluetooth 5.2Back Panel I/O Ports2 x USB 3.2 Gen 2 ports (2 x Type-A )4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort2 x HDMITM ports1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo portInternal I/O ConnectorFan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports1 x USB 3.2 Gen 1 connector (supports USB Type-C)2 x USB 2.0 headers support 4 additional USB 2.0 ports1 x USB 2.0 header supports 1 additional USB 2.0 portMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x LPT header1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude functionForm FactorMicro-ATXWarranty3 YearsNoteFeatures, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only

Features:Support Intel Core Ultra Processors (Series 2) for LGA 1851 socketSupports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCBFrozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experienceEZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ AntennaLightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2Ultra Connect: Thunderbolt 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmissionAudio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experiencePRO B860M-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel Core Ultra processors.The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.One Finger for EZ GPU InstallationThe new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces12+1+1+1 DRPS POWER DESIGNUnleash and sustain the maximum performance with a flagship VRM design built with a total of 12+1+1+1 digital power phases. With 8+4 pin power connectors, PRO B860M-A WIFI is ready for the challenge of high-end processors.OPTIMIZED PCB SOLUTIONThe PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.MotherboardPlatformINTELSocketLGA1851Cpu TypeCore UltraChipsetB860Memory Speedup to 8800+Max Memory Support256 GBSupported Memory TypeDDR5Channel SupportedDual ChannelMemory FeatureSupports Intel® POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel® XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM• The DIMM slots on this motherboard only have single-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand Site.Graphics Port1x HDMI,1x DisplayPort,1x Type-C DisplayPortExpansion Slots4x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)Wireless NetworkingWiFi 7,Bluetooth 5.4Back Panel I/O PortsDisplayPortKeyboard / MouseUSB 5Gbps Type-A5G LANWi-Fi / BluetoothAudio ConnectorsHDMI™Thunderbolt™ 4 40Gbps (Type-C)USB 2.0Clear CMOS ButtonUSB 10Gbps Type-AUSB 5Gbps Type-CInternal I/O Connector1x Thunderbolt5 card connector(JTBT5, support RTD3)1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 10Gbps Type C portsForm FactorMicro-ATXWarranty3 YearsNoteFeatures, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

Features:Supports Intel® Core™ 14th/ 13th /12th processorsUnparalleled Performance：Hybrid 8+1+1 Phases Digital VRM SolutionDual Channel DDR5：4DIMMs XMP Memory Module SupportNext Generation Storage：3 PCIe 4.0 x4 M.2 ConnectorsAdvanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD PerformanceEZ-Latch：PCIe 4.0x16 Slot with Quick Release DesignFast Networks：2.5GbE LAN & Wi-Fi 6E 802.11axExtended Connectivity：Front USB-C® 10Gb/s, DP, HDMISmart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics CardUNPARALLELED PERFORMANCEWith the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.OUTSTANDING THERMAL DESIGNGIGABYTE Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.ULTRA DURABLEGIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.MotherboardPlatformINTELSocketLGA1700Cpu Type14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron ProcessorChipsetB760Memory Speedup to 7600Max Memory Support256 GBSupported Memory TypeDDR5Channel SupportedDual ChannelMemory FeatureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modulesGraphics Port1 x DisplayPort, 1 x HDMIExpansion SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)Wireless NetworkingWiFi 6E,Bluetooth 5.3Back Panel I/O Ports1 x USB 3.2 Gen 2 Type-A port (red)1 x USB Type-C port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 port5 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x DisplayPort1 x HDMI port1 x RJ-45 port6 x audio jacksInternal I/O Connector1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumperForm FactorATXWarranty3 YearsNoteFeatures, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only

Features:Supports Intel Core Ultra processors (Series 2)Twin Hybrid 12+1+2 phases VRM solutionD5 Bionic Corsa for Infinite Memory PerformanceAI Perfdrive : Provides optimal and customized BIOS preset profile for usersWIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installationEZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless DesignEZ-Latch Click : M.2 heatsinks with screwless designNew  Power Monitor  in HWinfo for real-time monitoring on CPU power phasesFriendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SWUltra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11axExtended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPortInfinite Memory PerformanceGaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.Steady PowerBetter Play GAMING Series, steady power keeps your gaming smooth.Comprehensive ThermalGAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.M.2 Thermal GuardThe M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.Hassle-free AssemblyOur cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.All-round ConnectivityExperience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.Native 40Gbps USB4-Wi-Fi 7-2.5GbE LANBorn from Ultra DurableTechnology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.Collaborative Excellence in ComputingGIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.MotherboardPlatformINTELSocketLGA1851Cpu TypeCore UltraChipsetB860Memory Speedup to 9066Max Memory Support256 GBSupported Memory TypeDDR5Channel SupportedDual ChannelMemory FeatureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.)Graphics Port1 x USB4 USB Type-C port, 1 x HDMI port, 1 x DisplayPortExpansion SlotsCPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1,PCIEX1_2)Wireless NetworkingWiFi 6E,Bluetooth 5.3Back Panel I/O Ports1 x HDMI port (Note)1 x DisplayPort (Note)1 x USB4 USB Type-C port (DisplayPort (Note))2 x USB 3.2 Gen 1 ports1 x USB 3.2 Gen 2 Type-A port (red)5 x USB 2.0/1.1 ports2 x antenna connectors (2T2R)1 x RJ-45 port3 x audio jacks(Note) Actual support may vary by CPU.Internal I/O Connector1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumperForm FactorATXWarranty3 YearsNote***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

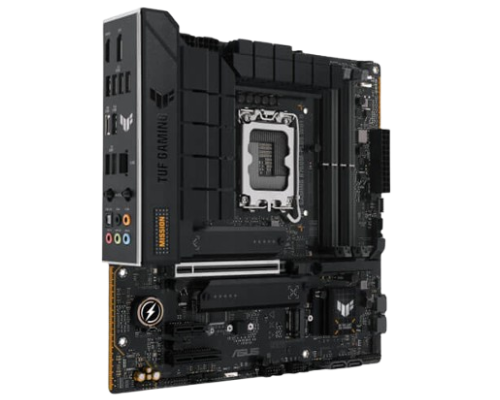

Features:TUF GAMING B760M-PLUS WIFI II takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.All-Around Energy EfficiencyThe Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.Armoury CrateThe ASUS-exclusive Armoury Crate software centralizes control of all supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from, and enables control of, a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community.Premium Power Delivery12+1+1 power stages are each rated to handle up to 50 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.Six-Layer PCB DesignThe multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.8+8 PIN ProCool Power ConnectorsCompared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.Digi+ VRMThe integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.Unleash DDR5 With AEMP IIASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.PCIe 4.0 SupportThe three PCIe 4.0 M.2 slots support up to three 2280 devices, two of which are capable of the data-transfer speeds are up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.Cooler By Design1. Enlarged VRM HeatsinkThe extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.2. Optimized M.2 Heatsink DesignTwo M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.Comprehensive Fan ControlsTUF GAMING B760M motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 2+ utility in Armoury Crate or via the award-winning ASUS UEFI BIOS.ConnectivityThe TUF-GAMING B760M-PLUS WIFI II reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes two Type-C connections, and Thunderbolt 4 expands compatibility and bandwidth even further.Easy PC DIYThe TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.Build With ConfidenceTUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.SafeSlot Core+ & SafeDIMMSafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot―all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.ESD GuardsESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.TUF LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.Stainless Steel Back I/O PanelTUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.PCIe Q-ReleaseA physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.Q-AntennaWith Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.M.2 Q-LatchThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.Removable Captive ScrewsSpecialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal.Q-LEDThe on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.Immersive GamingTUF GAMING B760M motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.2.5 Gb Ethernet2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.Two-Way AI Noise CancelationThis powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are muffled so you can hear and be heard with excellent clarity while gaming or during calls.Realtek 7.1 Surround SoundThe unique audio codec designed in close collaboration with Realtek for TUF GAMING B760M motherboards feature an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.DTS Audio ProcessingDTS Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.Addressable Gen 2 RGB HeaderThree addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.MotherboardPlatformINTELSocketLGA1700Cpu Type14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron ProcessorChipsetB760Memory Speedup to 7800+Max Memory Support192 GBSupported Memory TypeDDR5Channel SupportedDual ChannelMemory FeatureSupports Intel Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit brand website.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics Port1 x DisplayPort, 1 x HDMIExpansion SlotsIntel Core Processors (14th & 13th & 12th Gen)1 x PCIe 5.0 x16 slotIntel B760 Chipset1 x PCIe 4.0 x4 slot1 x PCIe 3.0 x1 slotWireless NetworkingWiFi 6E,Bluetooth 5.3Back Panel I/O Ports1 x USB 20Gbps port (1 x USB Type-C)1 x USB 10Gbps port (1 x Type-A)2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x HDMI port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out portInternal I/O ConnectorI/O Connectors Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector2 x 8-pin +12V Power connectorsStorage related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 10Gbps connector (supports USB Type-C )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports3 x USB 2.0 headers support 5 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Clear CMOS header1 x Front Panel Audio header (AAFP)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt (USB4) headerForm FactorMicro-ATXWarranty3 Years

Features:Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socketSupports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory BoostPremium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experienceHigh Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level materialLightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connectionAUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experienceMotherboardPlatformINTELSocketLGA1700Cpu Type14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron ProcessorsChipsetZ790Memory Speedup to 7000+Max Memory Support128 GBSupported Memory TypeDDR5Channel SupportedDual ChannelMemory FeatureSupports Intel XMP 3.0 OCSupports non-ECC, un-buffered memoryGraphics Port1x HDMI, 1x DisplayPortExpansion Slots3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)Wireless NetworkingWi-Fi 6E,Bluetooth 5.3Back Panel I/O PortsKeyboard / MouseDisplayPortUSB 2.02.5G LANWi-Fi / BluetoothAudio ConnectorsFlash BIOS ButtonUSB 2.0HDMIUSB 3.2 Gen 1 5Gbps (Type-A)USB 3.2 Gen 2x2 20Gbps (Type-C)USB 3.2 Gen 2 10Gbps (Type-A)Internal I/O Connector1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 10Gbps Type C portsForm FactorATXWarranty3 YearsNoteFeatures, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only

atures:Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socketSupports DDR5 Memory, up to 7000+(OC) MHzEnhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory BoostLightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop worksAUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experienceHigh Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level materialMotherboardPlatformINTELSocketLGA1700Cpu Type14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron ProcessorsChipsetB760Memory Speedup to 7000+Max Memory Support256 GBSupported Memory TypeDDR5Channel SupportedDual ChannelMemory FeatureSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel Extreme Memory ProfileGraphics Port1x HDMI, 1x DisplayPortExpansion Slots2x PCI-E x16 slotSupports x16/x41x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)Wireless NetworkingWiFi 6E,Bluetooth 5.3Back Panel I/O PortsUSB 2.0DisplayPort 1.4USB 3.2 Gen 2 10Gbps Type-A2.5G LAN PortWi-Fi / Bluetooth AntennaHD Audio ConnectorsHDMI 2.1 PortUSB 3.2 Gen 2x2 20Gbps Type-COptical S/PDIF OUTInternal I/O Connector1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan5x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C portsForm FactorATXWarranty3 YearsNoteFeatures, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only

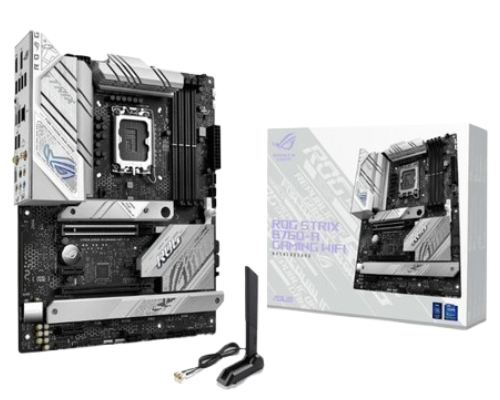

Features:The ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.PCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.POWER ARCHITECTURE12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.ALLOY CHOKES AND DURABLE CAPACITORSHigh-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.SIX-LAYER PCBA multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.LEADING CONNECTIVITYThe Strix B760-A is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.UNDENIABLY ROG STRIXDiagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B760-A bears all of them with pride. Its white, silver, and black color scheme pairs well with both dark and lighter-colored components. 8-bit accents show some gaming pride.TWO-WAY AI NOISE CANCELATIONThis utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.MotherboardPlatformINTELSocketLGA1700ChipsetB760Max Memory Support192 GBSupported Memory TypeDDR5Form FactorATX

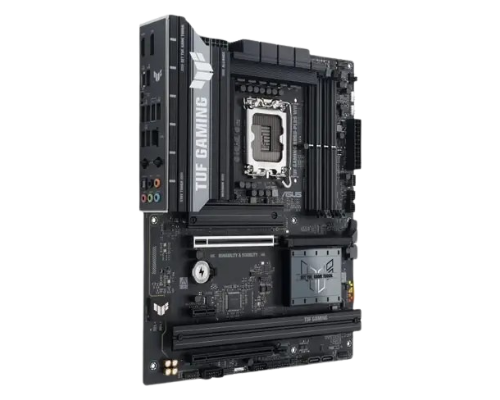

Features:ASUS TUF GAMING B860-PLUS WIFI takes all the essential elements of the latest Intel Core Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.Premium Power DesignStable power is crucial for maximizing the performance of Intel processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.DRAM Overclocking PerformanceComprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.*Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.AEMP IIIASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.**Results may vary according to individual system specifications. Currently, only 2-DIMM configurations are supported. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAMDIMM FitDIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability.Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.Cooler CompatibilityASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.PCIe 5.0 for Graphics CardPCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe busFront USB 10Gbps Type-CThis motherboard features a USB Type-C front panel connector for speedy data transfers of up to 10Gbps.Rear USB 20Gbps Type-C with DP Alt ModeThis motherboard features a rear USB 20Gbps Type-C with DP Alt mode for speedy data transfers of up to 20Gbps.M.2 PCIe 5.0 SupportThis motherboard also features one PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.PCIe Slot Q-ReleaseA physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.MotherboardPlatformINTELSocketLGA1851Cpu TypeCore UltraChipsetB860Memory Speedup to 8666+Max Memory Support256 GBSupported Memory TypeDDR5Channel SupportedDual ChannelMemory FeatureSupports Intel Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III(AEMPIII)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information Brand Site.**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics Port1 x DisplayPort,1 x HDMI,1 x USB Type-CExpansion SlotsIntel Core Ultra Processors(Series 2)1 x PCIe 5.0 x16 slot Intel B860 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)* 1 x PCIe 4.0 x1 slot* * PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode.- To ensure compatibility of the device installed, please refer to Brand Site for the list of supported peripherals.Wireless NetworkingWiFi 7,Bluetooth 5.4Back Panel I/O Ports1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)2 x USB 10Gbps ports (2 x USB Type-A)3 x USB 5Gbps ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)2 x USB 10Gbps ports (2 x USB Type-A)3 x USB 5Gbps ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ buttonInternal I/O Connector1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headers1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectors3 x M.2 slots (Key M)4 x SATA 6Gb/s ports1 x USB 10Gbps connector (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 ports3 x Addressable Gen 2 headers1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x 10-1 pin Front System Panel header1 x Thunderbolt™ (USB4®) headerForm FactorATXWarranty3 YearsNoteFeatures, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

Features:PRO Z890-P WIFISupport Intel Core Ultra Processors (Series 2) for LGA 1851 socketSupports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level materialFrozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experienceEZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ AntennaLightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmissionAudio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experienceMotherboardPlatformINTELSocketLGA1851Cpu TypeCore UltraChipsetZ890Memory Speedup to 9200+Max Memory Support256 GBSupported Memory TypeDDR5Channel SupportedDual ChannelMemory FeatureSupports Intel® POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel® XMP 3.0Supports Non-ECC, Un-buffered memorySupports CUDIMMGraphics Port1x HDMI,1x DisplayPort,1x Type-C DisplayPortExpansion Slots3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)Wireless NetworkingWi-Fi 7,Bluetooth 5.4Back Panel I/O PortsDisplayPortMouse / KeyboardUSB 2.05G LANWi-Fi / BluetoothAudio ConnectorsFlash BIOS ButtonThunderbolt™ 4 40Gbps (Type-C)HDMI™USB 2.0USB 5Gbps Type-AUSB 10Gbps Type-CUSB 10Gbps Type-AInternal I/O Connector1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)5x System Fan1x EZ Conn-header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 20Gbps Type C portsForm FactorATXWarranty3 YearsNoteFeatures, Price, Specifications are subject to change without notice. Images used for representation purposes only

Features:Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socketSupports DDR5 Memory, up to 7600+(OC) MHzLightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory BoostPremium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connectionAUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experienceHigh Quality PCB: 8-layer PCB made by server grade level materialPre-installed I/O Shield: Better EMI protection and more convenience for installationMotherboardPlatformINTELSocketLGA1700Cpu Type14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron ProcessorsChipsetZ790Memory Speedup to 7800+Max Memory Support128 GBSupported Memory TypeDDR5Channel SupportedDual ChannelMemory FeatureSupports Intel XMP3.0 OCSupports non-ECC, un-buffered memoryGraphics Port1x HDMIExpansion Slots2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)Wireless NetworkingIntel Wi-Fi 6E,Bluetooth 5.3Back Panel I/O PortsClear CMOS / FlashUSB 5 Gbps (Type-A)2.5G LANUSB 10Gbps (Type-A)Audio ConnectorsSmart ButtonHDMIUSB 10Gbps (Type-A)USB 10Gbps (Type-C)USB 20Gbps (Type-C)Wi-Fi / BluetoothOptical S/PDIF OutInternal I/O Connector1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan5x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 20Gbps Type C portsForm FactorATXWarranty3 YearsNoteFeatures, Price, Specifications are subject to change without notice. Images used for representation purposes only
