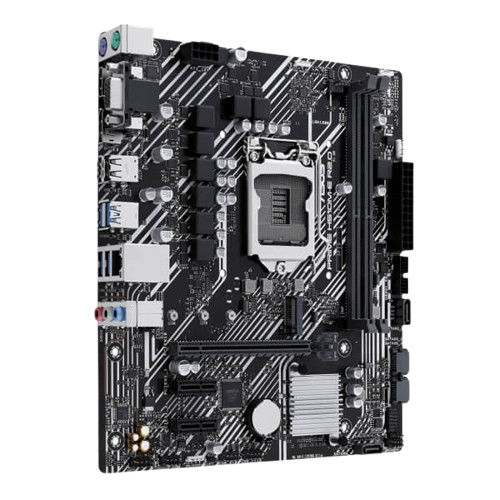

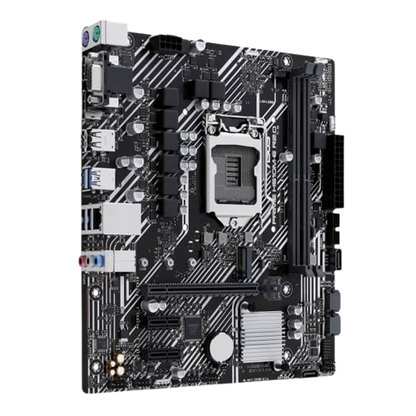

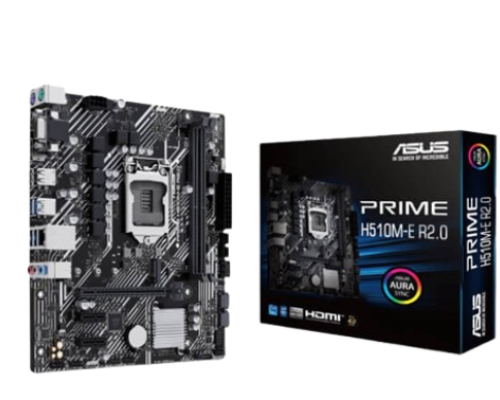

Asus Prime H510M-E R2.0 M-ATX Motherboard

Motherboard Platform INTEL Socket LGA1200 Cpu Type 11th Gen, 10th Gen Chipset H510 Memory Speed up to 3200 Max Memory Support 64 GB Supported Memory Type DDR4 Channel Supported Dual Channel Memory Feature Supports...

In stock

Rs. 7,812.00

Secure checkoutShopify protected

Easy supportFast assistance

Quality promiseBuilt for confidence

Fast dispatchSubject to availability

Delivery estimate

Check delivery to your PIN code

⌖

Enter your PIN code to see the delivery estimate configured for your store.

PIN code

PRODUCT DETAILS

Everything you need to know

Motherboard
Platform	INTEL
Socket	LGA1200
Cpu Type	11th Gen, 10th Gen
Chipset	H510
Memory Speed	up to 3200
Max Memory Support	64 GB
Supported Memory Type	DDR4
Channel Supported	Dual Channel
Memory Feature	Supports Intel Extreme Memory Profile (XMP)
Graphics Port	1 x DisplayPort,1 x VGA,1 x HDMI
Expansion Slots	Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel® 10th Gen processors support PCIe 3.0 x16 Intel® H470 Chipset 2 x PCIe 3.0 x1 slots
Back Panel I/O Ports	4 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
Internal I/O Connector	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Form Factor	Micro-ATX
Warranty	3 Years
