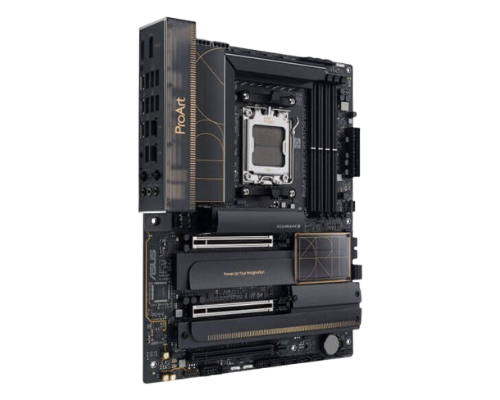

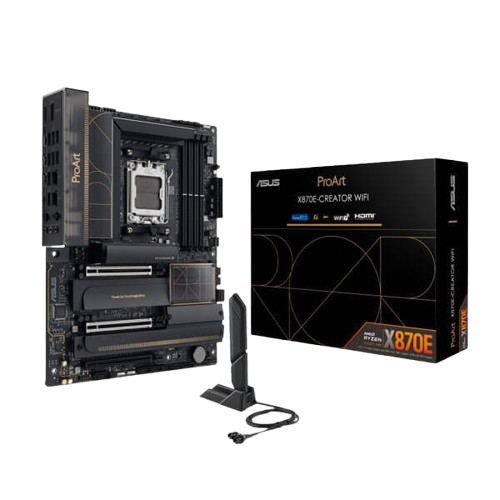

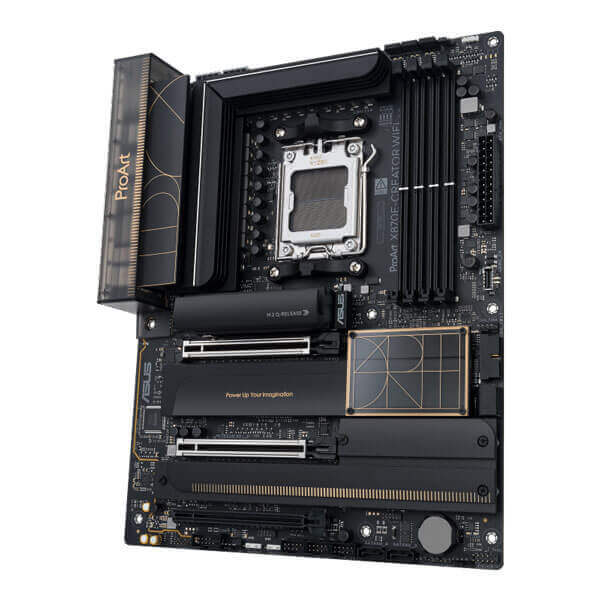

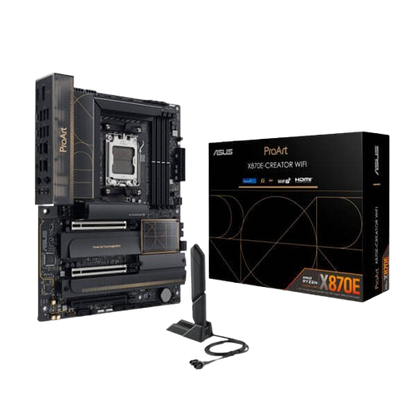

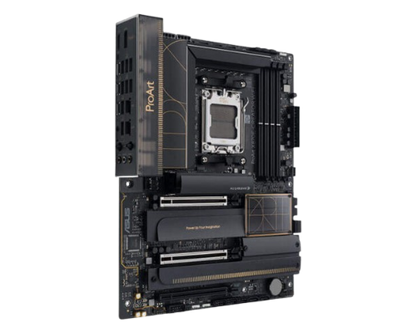

Asus ProArt X870E-Creator WIFI ATX Motherboard

Motherboard Platform AMD Socket AM5 Cpu Type Ryzen 9000,Ryzen 8000,Ryzen 7000 Chipset X870E Memory Speed up to 8000+ Max Memory Support 256 GB Supported Memory Type DDR5 Channel Supported Dual Channel Memory Feature ECC...

In stock

Rs. 59,093.00

Secure checkoutShopify protected

Easy supportFast assistance

Quality promiseBuilt for confidence

Fast dispatchSubject to availability

Delivery estimate

Check delivery to your PIN code

⌖

Enter your PIN code to see the delivery estimate configured for your store.

PIN code

PRODUCT DETAILS

Everything you need to know

Motherboard
Platform	AMD
Socket	AM5
Cpu Type	Ryzen 9000,Ryzen 8000,Ryzen 7000
Chipset	X870E
Memory Speed	up to 8000+
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	ECC and Non-ECC Un-buffered DIMM Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Graphics Port	1 x HDMI,2 x USB4
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes) AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled) AMD Ryzen 8500 & 8300 Series Desktop Processors* 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled) AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site. When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each. * PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4.
Wireless Networking	WiFi 7,Bluetooth 5.4
Internal I/O Connector	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Form Factor	ATX
Warranty	3 Years
