Asus

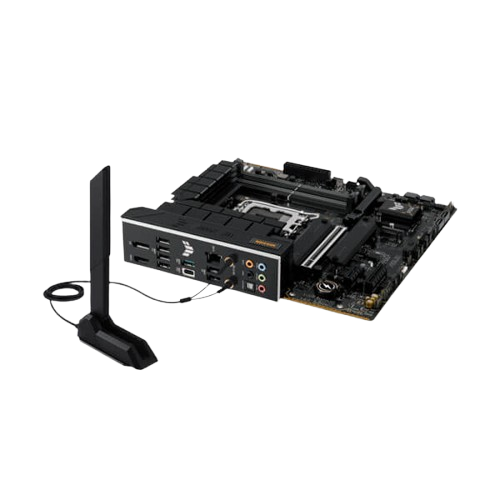

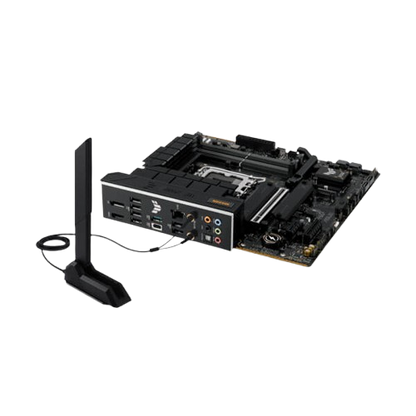

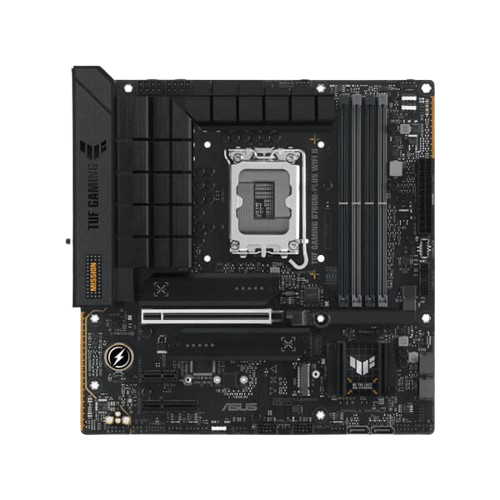

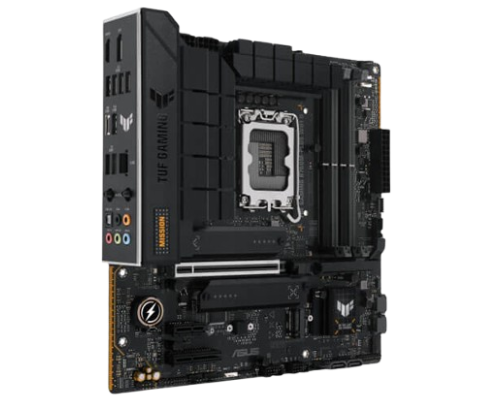

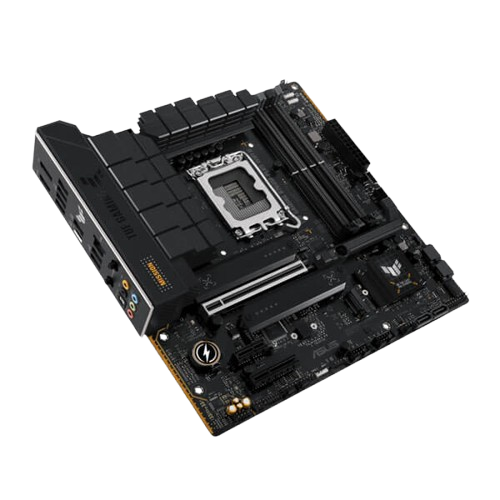

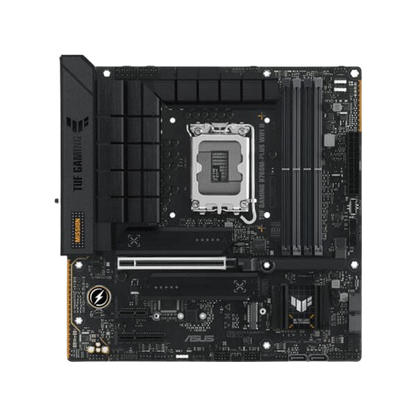

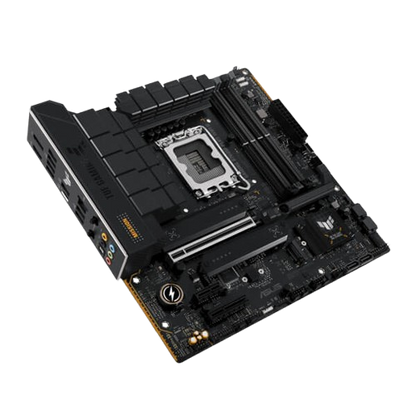

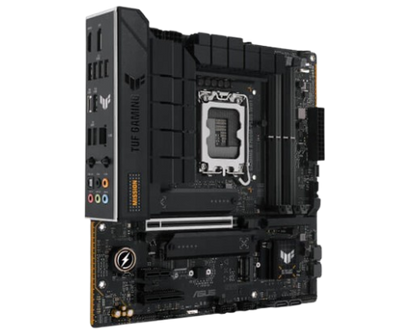

Asus TUF Gaming B760M-PLUS WIFI 6E II DDR5 Motherboard

Asus TUF Gaming B760M-PLUS WIFI 6E II DDR5 Motherboard

Rs. 24,912.00
Rs. 24,912.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Motherboard
Platform INTEL
Socket LGA1700
Cpu Type 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processor
Chipset B760
Memory Speed up to 7800+
Max Memory Support 192 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit brand website.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics Port 1 x DisplayPort, 1 x HDMI
Expansion Slots Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot
Wireless Networking WiFi 6E,Bluetooth 5.3
Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connector I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Form Factor Micro-ATX
Warranty 3 Years
