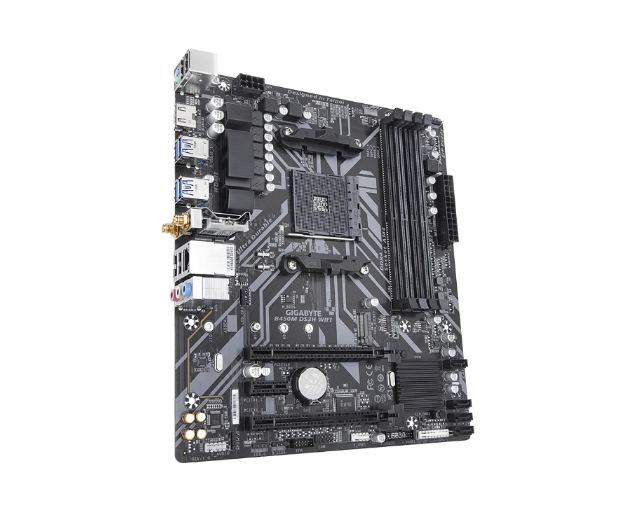

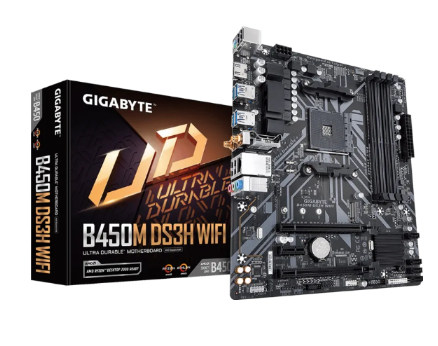

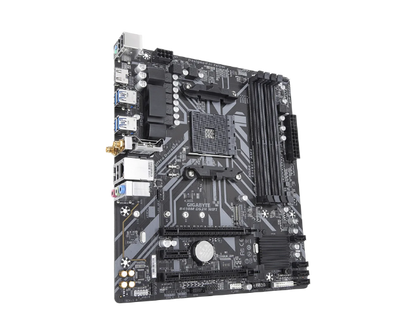

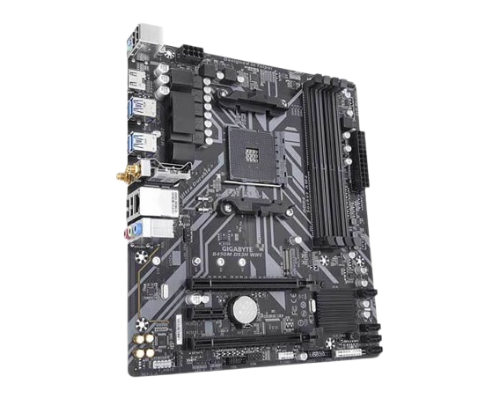

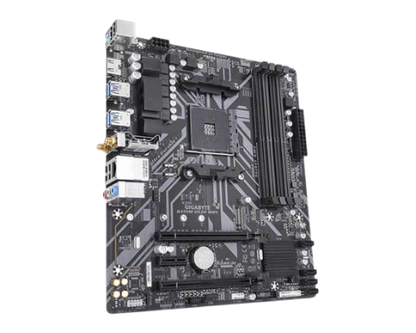

Gigabyte B450M DS3H WiFi Motherboard
Gigabyte B450M DS3H WiFi Motherboard
Regular price
Rs. 8,111.00
Regular price
Sale price
Rs. 8,111.00
Taxes included.
Quantity
Couldn't load pickup availability
| Specifications: | |
| Model | B450M DS3H WIFI |
| CPU | AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors |
| (Please refer "CPU Support List" for more information.) | |
| Chipset | AMD B450 |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory |
| Dual channel memory architecture | |
| Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer "Memory Support List" for more information.) | |
| Onboard Graphics | Integrated Graphics Processor: |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) | |
| * Support for HDMI 2.0 version and HDCP 2.2.(Note) | |
| Maximum shared memory of 16 GB | |
| (Note) Actual support may vary by CPU. | |
| Audio | Realtek®Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Wireless Communication module | AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) |
| WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band | |
| BLUETOOTH 5.0 | |
| Support for 11ac wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| (The PCIEX16 slot conforms to PCI Express 3.0 standard.) | |
| 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) | |
| 1 x PCI Express x1 slot | |
| (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.) | |
| (Note) Actual support may vary by CPU. | |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) |
| * Actual support may vary by CPU. | |
| * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. | |
| 4 x SATA 6Gb/s connectors | |
| Support for RAID 0, RAID 1, and RAID 10 | |
| * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. | |
| USB | CPU: |
| 4 x USB 3.1 Gen 1 ports on the back panel | |
| Chipset: | |
| 2 x USB 3.1 Gen 1 ports available through the internal USB header | |
| 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x system fan header | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x CPU cooler LED strip/RGB LED strip header | |
| 1 x RGB LED strip header | |
| 2 x addressable LED strip headers | |
| 1 x USB 3.1 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |

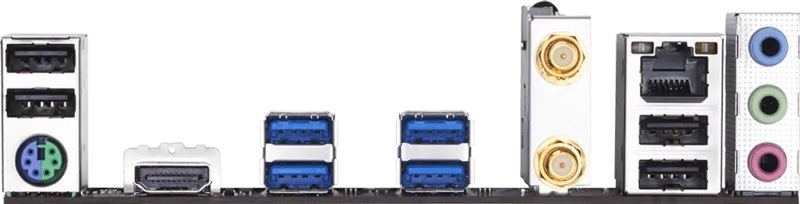

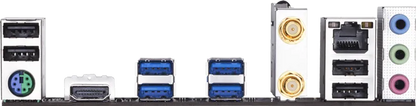

| Back Panel Connectors | |
| 1 x PS/2 keyboard/mouse port | |
| 1 x HDMI port | |
| 4 x USB 3.1 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 2 x SMA antenna connectors (1T1R) | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Overheating warning | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| BIOS | 1 x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| EasyTune | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| Support for Q-Flash | |
| Support for Xpress Install | |
| Bundled Software | Norton® Internet Security (OEM version) |
| cFosSpeed | |
| Operating System | Support for Windows 10 64-bit |
| Support for Windows 7 64-bit | |
| * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. | |
| * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| Remark | Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. |
| Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. | |
| Duration | 3 Years |
| Note | *** Image use for reference only |
| *** Features, Price, Specifications are subject to change without notice. |
