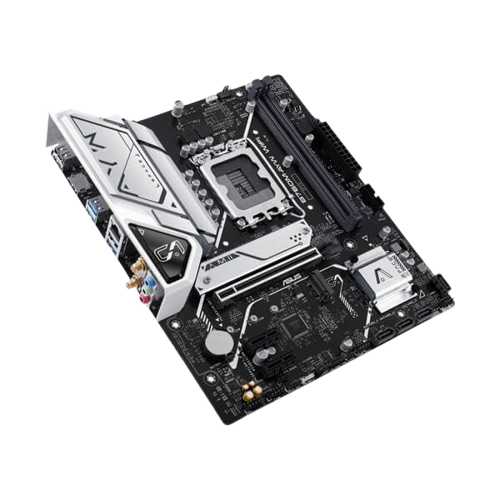

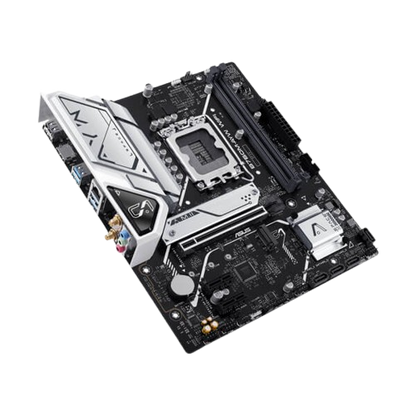

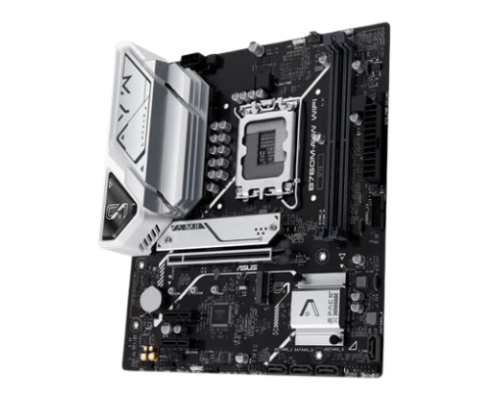

Asus B760M-AYW WIFI DDR5 M-ATX Motherboard

Motherboard Platform INTEL Socket LGA1700 Cpu Type 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors Chipset B760 Memory Speed up to 8000 Max Memory Support 96 GB Supported Memory Type DDR5 Channel...

In stock

Rs. 14,806.00

Secure checkoutShopify protected

Easy supportFast assistance

Quality promiseBuilt for confidence

Fast dispatchSubject to availability

Delivery estimate

Check delivery to your PIN code

⌖

Enter your PIN code to see the delivery estimate configured for your store.

PIN code

PRODUCT DETAILS

Everything you need to know

Motherboard
Platform	INTEL
Socket	LGA1700
Cpu Type	14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset	B760
Memory Speed	up to 8000
Max Memory Support	96 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Brand website. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics Port	1 x HDMI
Expansion Slots	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots
Wireless Networking	WiFi 6,Bluetooth 5.3
Back Panel I/O Ports	4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
Internal I/O Connector	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Form Factor	Micro-ATX
Warranty	3 Years
