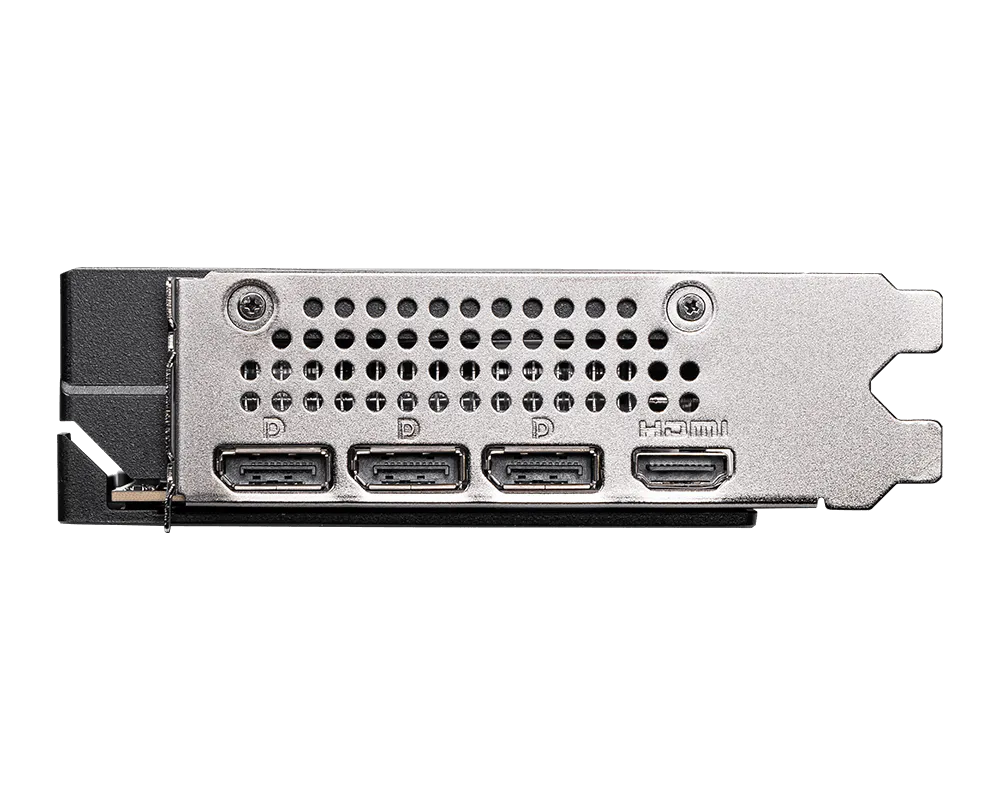

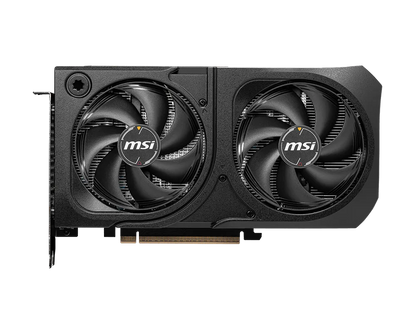

SPECIFICATIONS Marketing Name GeForce RTX™ 5060 Ti 8G SHADOW 2X OC PLUS Memory 8GB GDDR7 Output DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti Interface PCI Express® Gen 5 x16 (uses x8) Core Clock Speed (MHz) Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz Memory Interface 128-bit Memory Clock Speed (MHz) 28 Gbps OpenGL Version Support 4.6 Maximum Displays 4 HDCP Support Y DirectX Version Support 12 Ultimate Card Dimension(mm) 226 x 126 x 41 mm Card Weight (g) 553 g / 814 g Power consumption (W) 180 W Recommended PSU (W) 600 W Digital Maximum Resolution 7680 x 4320 Power Connectors 8-pin x 1 Mic-in/Headphone-out 1/1
